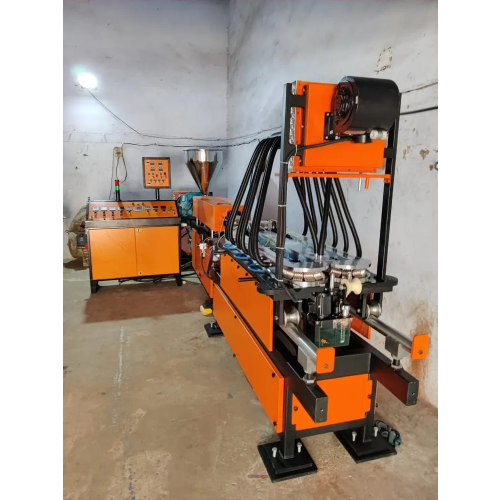

Nylon Corrugated Pipe Machine
A Nylon Corrugated Pipe Machine, also known as a PA (Polyamide) Corrugated Pipe Extrusion Line, is specialized equipment used to manufacture flexible, durable, and lightweight corrugated pipes primarily from nylon-based materials. These pipes are widely used in automotive, electrical conduit, and industrial applications due to their resistance to wear, high temperatures, and chemicals.
Technical Specification
| Model | MIN. I. D.(mm) | MAX O.D. (mm) | Chian Length(mm) | No. Of Mould | Process Material | Supply Drive |
|---|---|---|---|---|---|---|
| SF-63/92 | 30 | 63 | 6062 | 92 | HD.P.P. | 3.5 KW |
| SF-75/92 | 38 | 75 | 6062 | 92 | HD.P.P. | 5.0 KW |
| SF-120/54 | 38 | 120 | 6102 | 54 | HD.P.P. | 5.5 KW |
| SF-180/60 | 65 | 180 | 6000 | 60 | HD.P.P. | 7.5 KW |
| SF-200/56 | 90 | 200 | 6320 | 56 | HD.P.P. | 7.5 KW |
| SF-314/45 | 110 | 315 | 6210 | 45 | HD.P.P. | 5.2 KW |
